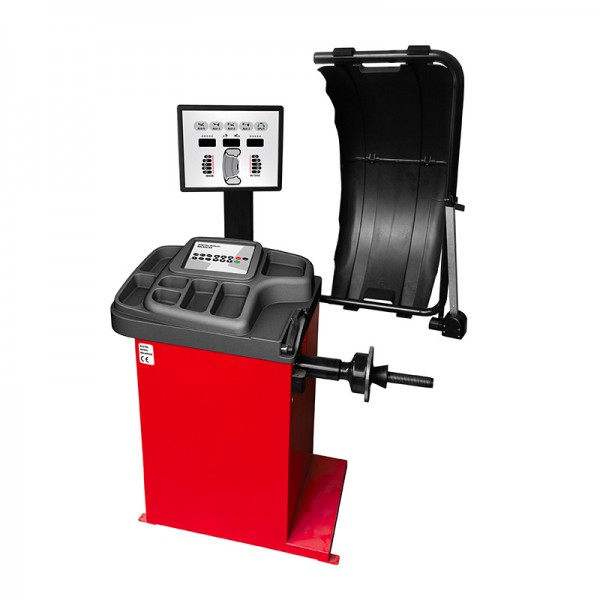

U-5839 LED Display Wheel Balancer with OPT Function & Split and Hidden Weight Solution

U-5839 LED Display Wheel Balancer with OPT Function & Split and Hidden Weight Solution

The U-5839 LED wheel balancer with opt function & split and hidden weight solution features an electromagnetic brake, laser pointer, led light, and automatic measurement, making it easy to use and accurate in balancing wheels. U-5839 LED wheel balancer is a motorized balancer at a great value that compliments any shop. The small footprint and lower rotational speed offers features even the most demanding operator will appreciate.

  • Electromagnetic Brake
  • Automatic Positioning of Unbalance Points
  • Laser Pointer
  • Automatic measurement
  • LED Light

  • Product Code: U-5839 OPT Function Wheel Balancer

The U-5839 LED wheel balancer with opt function & split and hidden weight solution features an electromagnetic brake, laser pointer, led light, and automatic measurement, making it easy to use and accurate in balancing wheels. U-5839 LED wheel balancer is a motorized balancer at a great value that compliments any shop. The small footprint and lower rotational speed offers features even the most demanding operator will appreciate.

Features:

1. Electromagnetic BrakeThe electromagnetic brake function can automatically position the inner and outer unbalanced position;

2. Automatic Positioning of Unbalance PointsThe machine has an automatic positioning feature that detects the unbalanced point, eliminating the need for manual hand-spinning of the tire.

3. Laser Pointer: Points out the unbalancing place with laser automatically;

4. LED Light: Equipped LED to illuminate the operating area;

5. Automatic measurement: Automatic distance and wheel diameter measuring, allowing faster data input; The tracking sticking balancing mode is particularly suitable for the high-class wheel that uses stick-on weights only; Automatic width measuring scale.



Tire Balancer
Product Code U-5839
Balancing Modes 6 Balancing Modes
Balancing speed 200 r.p.m
Rim diameter 252-610 mm 10"-24"
Rim width 40-510 mm 1.5"-20"
Split and hidden weight solution
Measuring time 8s
Balancing accuracy ±1g(±0.04 oz)
Max. wheel weight 65 kg (143 lbs)
Power supply voltage options 220V 1PH
Option motor power 0.2kW
Noise level < 70dB
Package dimension 560*960*1150mm
