SD1800Q-40 40m Conveyor Car Wash Equipment
40 m Conveyor Car Wash Equipment to wash approximately 150-180 cars per hour. This is a suggestive configuration. You can configure Mattias 40m Conveyor Car Wash Equipment as per your specific requirements. You can add or remove systems to cater to your local requirements.
Any requirement of approximately 40 cars per hour or more during the peak hours should consider a conveyorised car wash option. The SD1800Q-40 40m Conveyor Car Wash Equipment series has a robust conveyor and is hot dip galvanised for long life.The Wash Arches are configurable and you can change the car wash equipment configuration to suit your local requirements and customer expectations.
| Applicable Car Types | Passenger cars, SUVs, vans, and commercial vehicles with up to 7 seats |
|---|---|
| Installation Space | 52 x 4 x ＞4 m(L*W*H) |
| Max.Washable Car Dimensions | 5.5 x 2.2 x 2.2 m(L*W*H) |
| Car Wash Mode | Mode 1/Mode 2/Mode 3/Mode 4 |
| Washing Mode | 【Mode 1：High-pressure water pre-rinse → Foam car wash detergent → Cleaning agent → Brushing I→ Brushing II→ Spray water wax → Air drying → Wipe drying brushes 】, 【 Mode 2：High-pressure water pre-rinse → Foam car wash detergent → Brushing → Spray water wax → Air drying → Wipe drying brushes】, 【 Mode 3：Foam car wash detergent → Brushing → Spray water wax → Air drying → Wipe drying brushes 】, 【 Mode 4：High-pressure water pre-rinse → Brushing → Spray water wax → Air drying → Wipe drying brushes】 |
| Estimated Wash Time | Mode 1：3.3 min/car, Mode 2：3.3 min/car, Mode 3：3.3 min/car, Mode 4：3.3 min/car |
| Estimated Power Consumption | Mode 1：0.87 kWh/car, Mode 2：0.76 kWh/car, Mode 3：0.64 kWh/car, Mode 4：0.75 kWh/car |
| Estimated Water Consumption | Mode 1：470 l/car, Mode 2：351 l/car, Mode 3：68 l/car, Mode 3：315 l/car |
| Estimated Wash Liquid Consumption | Mode 1：550 ml/car, Mode 2：-, Mode 3：-, Mode 4：550 ml/car |
| Estimated Water Wax Consumption | Mode 1：550 ml/car, Mode 2：550 ml/car, Mode 3：550 ml/car, Mode 4：550 ml/car |
| Rated Power (including air/dryer/water pump) | 106.8 kW |
| Rated Voltage | 3-ph AC380V 50Hz |
| Air Source Requirement | 0.6~0.8 Mpa |
40 m Conveyor Car Wash Equipment to wash approximately 150-180 cars per hour. This is a suggestive configuration. You can configure Mattias 40m Conveyor Car Wash Equipment as per your specific requirements. You can add or remove systems to cater to your local requirements.
Any requirement of approximately 40 cars per hour or more during the peak hours should consider a conveyorised car wash option. The SD1800Q-40 40m Conveyor Car Wash Equipment series has a robust conveyor and is hot dip galvanised for long life.The Wash Arches are configurable and you can change the car wash equipment configuration to suit your local requirements and customer expectations.

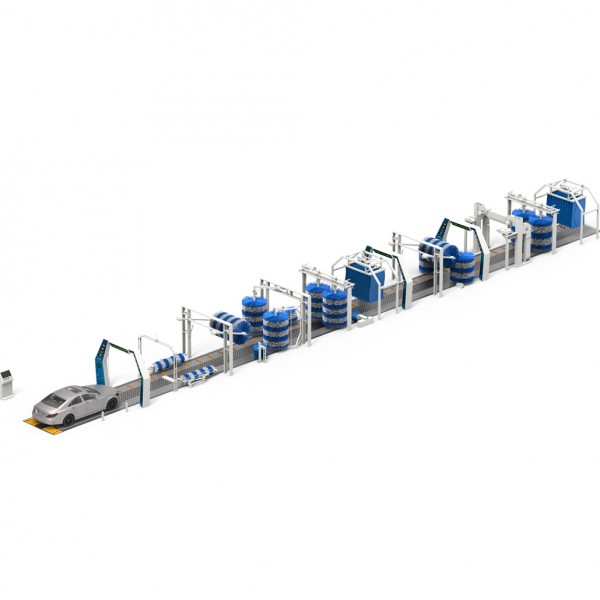

A typical 40 m configuration consists of the following :
1. Control console
2. Conveyor track
3. Entrance
4. Entrance photoelectric switch
5. High-pressure oscillating water spray
6. High-pressure bottom spray
7. Horizontal scrubbing brush (PE brush)
8. Foam curtain and top brush scrubbing(Foaming detergent)
9. Small scrubbing brush (EVA brush)
10.Vertical scrubbing brush (EVA brush)
11. Small scrubbing brush (EVA brush)
12.Cleaning wheel brush (PE brush)
13. Vertical scrubbing brush (EVA brush)
14. Cleaning oscillating brush (EVA brush)
15.Polishing area entrance (Reverse osmosis water, protective coating solution)
16. Polishing top brush (EVA brush)
17.Polishing side brush (EVA brush)
18. Entrance to the care area (water wax)
19. Knife-style drying system
20. Drying vertical brush (Suede Cloth)
21 Drying oscillating brush (Suede Cloth)
Installing a conveyor system gives you can instant edge over the ubiquitous Car Wash Centers which are coming up. The conveyor equipment is easy to operate and easy maintain.
Equipment details:
- Integrated intelligent liquid proportioning system
- Intelligent Low-temperature Start-Stop System
- Car wash count tracking
- Fault self-checking system
- Phase loss power cut-off protection
- AGV Collision Protection
Your advantages:
- Modular concept – fully flexible in throughput and equipment.
- Generous dimensions – for vehicles up to 2.20 m wide and 2.20 m high.
- Effective cleaning of problem areas – thanks to optional units for front, rear, sill and wheel rim cleaning.
- Effective washing and drying results – thanks to linear travel technology, which prolongs the contact with the vehicle.
- Effective use of chemicals – thanks to long and optimally designed reaction zone.
- Effective washing and drying results – thanks to powerful high-pressure units and linear travel technology, which prolongs the contact with the vehicle
With SD1800Q-40 40m Conveyor Car Wash Equipment, virtually everything is possible. Choose from numerous modules for all the sections of the conveyor tunnel system, from the entrance to the pre-wash and main wash through to the care and drying stations. And configure precisely the conveyor tunnel system to fit the space you have available, your washing volume and the expectations of your customers.
