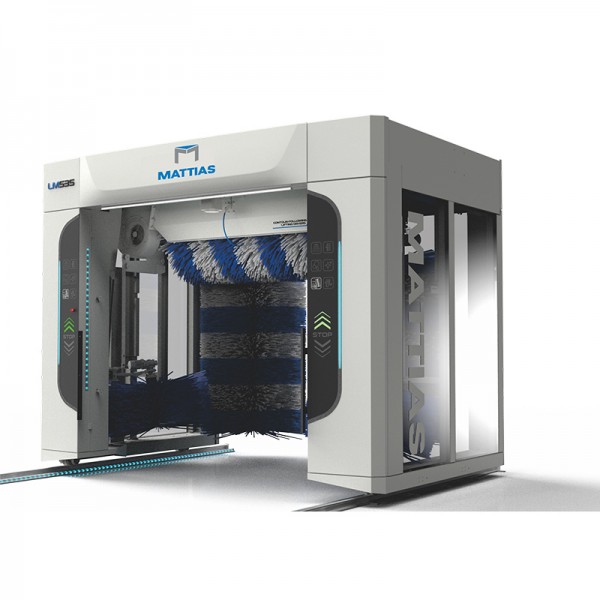

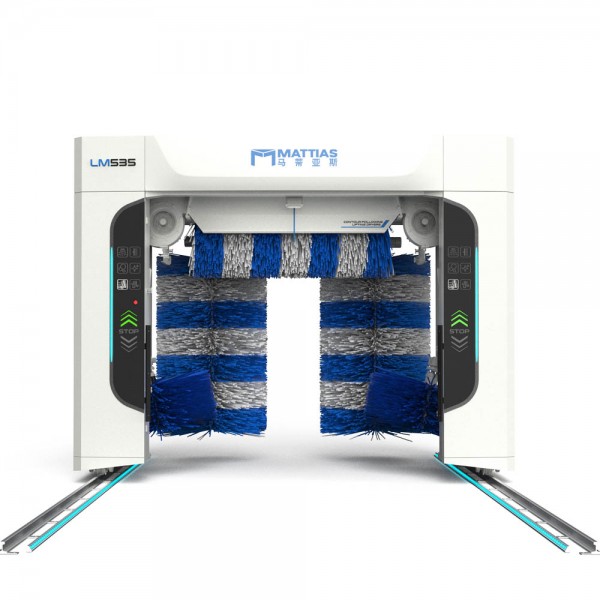

M-LM535 Rollover Automatic Car Wash Machine

M-LM535 Rollover Automatic Car Wash Machine

M-LM535 Rollover Automatic Car Wash Machine

M-LM535  Automatic Car Wash Equipment comes with a host of exciting features. The car wash equipment is state of the art equipment with advanced control system which continuously calculating giving it an Artificial Intelligence to exceute various functions and make its own decision based on the car shape and size.
All the three brushes sense the car independently. The machine adjusts the angle of brushes based on the car profile. The brushes do the front and rear overlapping, attarctive LED lights…. So many such important features.

  • Car Wash Centers
  • Car Factories
  • Auto Dealerships
  • Mall / Shopping Area / Airport Parking Lots
  • Fleeting Management and Services
  • Office Parking Lots
  • Residential Complexes
  • Automobile Stockyards

  • Product Code: M-LM535 Rollover Automatic Car Wash Machine
Dryer System Top Dryer 2 Contour-following lifting dryers
Side Dryer 2 fixed dryers
Brush System Top Brush Contour-following lifting
Side Brush Motor-driven,chain-driven travel system
Small Brush Standard small vertical brush
Material of Brush EVA foam brush
Wash Liquid System Car Wash Liquid User-customized mixing ratio carwash soap,standard ratio pump for automatic mixing
Water Wax User-customized mixing ratio water wax,standard ratio pump for automatic mixing
Travel System Motor-driven,chain-driven travel system
Control System Mitsubishi PLC control system
Wireless Remote Control Optional
Display Gate LED display interface, intelligent operator console 10 ‘LCD touch screen
Intelligent Operating Console Standard
Car wash Quantity Tracking Standard
Fault Self-diagnosis Standard
Rearview Mirror Deflection/ Clearing Function Standard
Beyond Centerline Wash Standard
Smart Parking Guidance Optional
Overall Structure Sheet metal welded frames hot dip galvanised
Multi-stage Submersible Pump Standard(water pump pressure 0.96MPa）
High-pressure Water Pre-rinsing Optional ( plunger pump, pump water pressure 10MPa)
Intelligent Low-temperature Start-stop System Optional
Voice Broadcast System Optional
Wide-angle Lens Optional
WeChat Payment Function Optional(Optional for China only)
Customer-supplied Water Tank Specifications 2tons
Customer-supplied Air Compressor Specifications 2.2kW, 120L, 0.8MPa
Mode 1 (→) Foam Car Wash Brush + Spray Wax, (←) Air Drying
Mode 2 (→) Foam Car Wash Brushing, (←) Spray Waxing
Mode 3 (→) Foam car wash scrubbing, (←) water scrubbing + spraying with water wax, (→+←) air drying
Mode 4 (→+←) Air-drying
Applicable Car Types Passenger car, SUV, minivan, and other vehicles with less than 7 seats
Max.Washable Car Dimensions(L*W*H) 5.4m × 2.2m × 2.0m
Car Wash Time Mode 1 Around 3.25min/Car，Mode 2 Around 3min/Car，Mode 3 Around 6min/Car，Mode 4 Around 2.5min/Car
Shampoo Consumption Mode 1 Around 19mL/Car，Mode 2 Around 19mL/Car，Mode 3 Around 19mL/Car
Wax Consumption Mode 1 Around 15mL/Car，Mode 3 Around 15mL/Car
Power Consumption Mode 1 Around 0.95 kWh/Car，Mode 2 Around 0.7 kWh/Car，Mode 3 Around 1.5 kWh/Car，Mode 4 Around 0.8 kWh/Car
Water Consumption Mode 1 Around 110L/Car，Mode 2 Around 150L/Car，Mode 3 Around 150L/Car

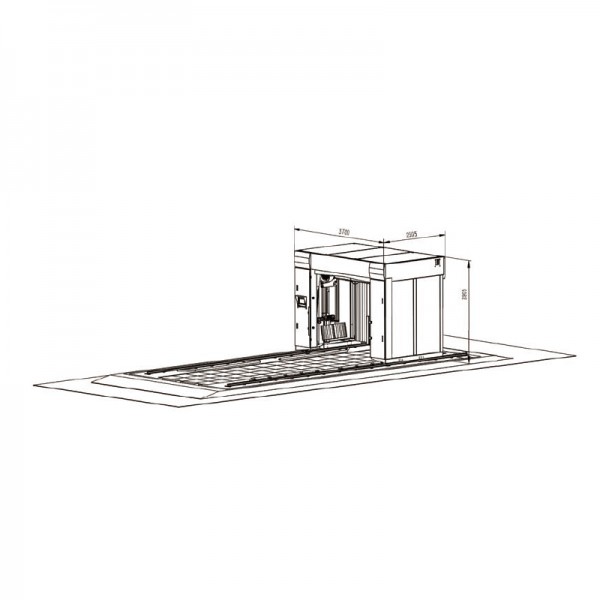

Machine Dimensions(L * W * H) 2.45m × 3.7m × 2.9m
Track Dimensions(L * W ) 9.5m × 3.29m
Installation Dimensions(L * W * H) 10m × 4m × （＞3.5m）
Air Source Requirement 0.6~0.8MPa
Rated Voltage of Machine 3-phase AC380V 50Hz
Rated Power of Machine 30.5kW
Top Brush Rotation Motor 0.75kW*1
Top Brush Lifting Motor 0.75kW*1
Side Brush Rotation Motor 0.75kW*2
Side brush opening and closing motor 0.2kW*2
Small Brush Motor 0.37kW*2
Travelling Motor 0.18kW*2
Top Dryer Motor 5.5kW*2
Side Dryer Motor 5.5kW*2
Top Dryer Lifting Motor 0.75kW*1
Submersible Pump Motor 2.2kW*1
Submersible Pump Pressures 0.96MPa
High-pressure Water Pump Motor 18.5KW*1（Optional）
Pressure of High-pressure Water Pump 10MPa（Optional）
Frame Hot-dip galvanized profiles
Programmable Controller Mitsubishi, Japan
Variable Frequency Drive Zhongchen (Orbital), Shanghai, China
Infrared Photoelectric Switch ROKO, Taiwan, China
Proximity Switch ROKO, Taiwan, China
AC Contactor Schneider, France
Thermal Relay Schneider, France
Air Switch Delixi, Zhejiang,China
Waterproof Gear Motor SITI
Pressure Reducing Valve AirTax，Taiwan China
Pressure Regulating and Filtering Valve AirTax，Taiwan China
Two-Position Five-Way Valve AirTax，Taiwan China
Pneumatic Cylinder AirTax，Taiwan China
Submersible Pump Kaili, Shanghai China
High-Pressure Water Pump PINFL,Germany
  • Car Wash Centers
  • Car Factories
  • Auto Dealerships
  • Mall / Shopping Area / Airport Parking Lots
  • Fleeting Management and Services
  • Office Parking Lots
  • Residential Complexes
  • Automobile Stockyards
Perfect for both commercial and SUVs (up to 7 seats）

M-LM535  Automatic Car Wash Equipment comes with a host of exciting features. The car wash equipment is state-of-the-art equipment with an advanced control system that continuously calculates giving it Artificial Intelligence to execute various functions and make its own decisions based on the car's shape and size.

All three brushes sense the car independently. The machine adjusts the angle of brushes based on the car profile. The brushes do the front and rear overlapping, attractive LED lights…. There are so many such important features.

Product Features：
* Wide body pass-through design for a wide range of models.
* The equipment adopts a non-rusting treatment frame for a longer service life.
* Cross-over washing keeps the front and rear bumper clean.
* The machine has precision sensors that can accurately sense the vehicle's position.
* The contour-following dryer with advanced technology will effectively remove the vehicle from the remaining water.
* Standard with the contour-tracking top brush.
* Adopts AGV(Automatic Guided Vehicle) technology to protect both the vehicle and the equipment.
* Equipped with fault self-test function.
* Provide an intelligent parking guidance system.
