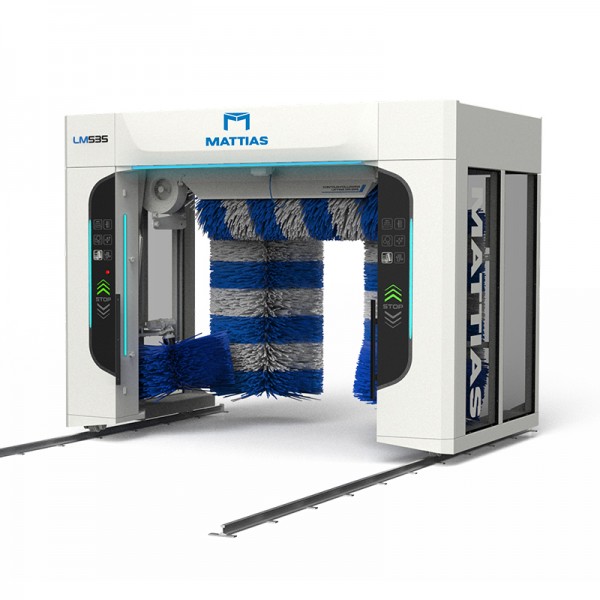

M-LM535 Rollover Automatic Car Wash Machine

M-LM535 Rollover Automatic Car Wash Machine

M-LM535  Automatic Car Wash Equipment comes with a host of exciting features. The car wash equipment is state of the art equipment with advanced control system which continuously calculating giving it an Artificial Intelligence to exceute various functions and make its own decision based on the car shape and size.
All the three brushes sense the car independently. The machine adjusts the angle of brushes based on the car profile. The brushes do the front and rear overlapping, attarctive LED lights…. So many such important features.

  • Car Wash Centers
  • Car Factories
  • Auto Dealerships
  • Mall / Shopping Area / Airport Parking Lots
  • Fleeting Management and Services
  • Office Parking Lots
  • Residential Complexes
  • Automobile Stockyards

  • Product Code: M-LM535 Rollover Automatic Car Wash Machine
  • Car Wash Centers
  • Car Factories
  • Auto Dealerships
  • Mall / Shopping Area / Airport Parking Lots
  • Fleeting Management and Services
  • Office Parking Lots
  • Residential Complexes
  • Automobile Stockyards
Machine Dimensions(L*W*H)
2.4*3.7*2.9m
Rail (L* W)
9.5*3.29m
Installation Dimensions
10m*4m*(>3.5m)
Air Source Requirement
0.6-0.8Mpa
Machine Rated Power
29.41kW
Rated Voltage
AC380V 50Hz 3ph
Top Brush Rotation Motor Power
0.75kW*1
Top Brush Lifting Motor Power
0.75kW*1
Side Brush Rotation Motor Power
0.75kW*2
Small Brush Motor Power
0.37kW*2
Travel Motor
0.2kW*2
Submersible Pump Motor Power
5.5kW*2
Dryer Motor Power (Top Dryer & Side Dryer)
5.5kW*2
Top Dryer Lifting Motor Power
0.75kW*1
Side Brush Open&Close Motor Power
0.2kW*2
Water Pump Motor
1.5kW*1
Water Consumption
Mode1≈100L/vehicle Mode2≈120L/vehicle Mode3≈120LL/vehicle
Perfect for both commercial and SUVs (up to 7 seats)

M-LM535  Automatic Car Wash Equipment comes with a host of exciting features. The car wash equipment is state-of-the-art equipment with an advanced control system that continuously calculates giving it Artificial Intelligence to execute various functions and make its own decisions based on the car's shape and size.

All three brushes sense the car independently. The machine adjusts the angle of brushes based on the car profile. The brushes do the front and rear overlapping, attractive LED lights…. There are so many such important features.

Product Features:
* Wide body pass-through design for a wide range of models.
* The equipment adopts a non-rusting treatment frame for a longer service life.
* Cross-over washing keeps the front and rear bumper clean.
* The machine has precision sensors that can accurately sense the vehicle's position.
* The contour-following dryer with advanced technology will effectively remove the vehicle from the remaining water.
* Standard with the contour-tracking top brush.
* Adopts AGV(Automatic Guided Vehicle) technology to protect both the vehicle and the equipment.
* Equipped with fault self-test function.
* Provide an intelligent parking guidance system.
