M-LM530 Gantry Car Wash Equipment

M-LM530 Gantry Car Wash Equipment

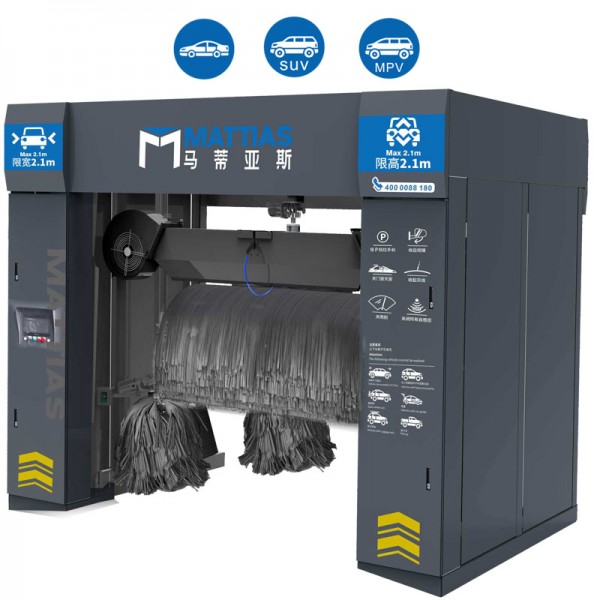

Mattias introduces an all-new, in-bay wash system that offers your customers and higher profit potential for you. The all-new M-LM530 three-brush, the gantry-style workhorse is loaded with technologically advanced features and controls. Designed for easy installation and maintenance, the M-LM530 is a compact profit-maker that will have you cleaning up in no time.
M-LM530 is an Advanced Automatic Car Wash Machine with many advanced features in built into it. The system comes with 3 brushes with individual Brush Pressure Sensing. With the two Wheel Brushes fitted already, the system becomes a 5 Brush system. The System can be upgraded with Lava Foam, Sealer Wax, Triple foam wax, Bug Spray, Mirror Spray System etc.


  • Product Code: M-LM530 Gantry Car Wash Equipment
Dryer System Top Dryer 2 Contour-following lifting dryers
Side Dryer 2 fixed dryers
Brush System Top Brush Contour-following lifting
Side Brush Motor-driven,chain-driven travel system
Small Brush Standard small vertical brush
Material of Brush EVA foam brush
Wash Liquid System Car Wash Liquid Standard siphon liquid(User-customized mixing ratio car wash soap) Optional ratio pump for automatic mixing
Water Wax Standard siphon liquid(User-customized mixing ratio car wash soap) Optional ratio pump for automatic mixing
Travel System Motor-driven,chain-driven travel system
AGV Collision Protection Standard
Control System Mitsubishi PLC control system
Wireless Remote Control Optional
Display 10 ‘LCD touch screen
Car wash Quantity Tracking Standard
Fault Self-diagnosis Standard
Rearview Mirror Deflection/ Clearing Function Standard
Beyond Centerline Wash Standard
Smart Parking Guidance Optional
Overall Structure Sheet metal welded frames hot dip galvanised
Multi-stage Submersible Pump Standard(water pump pressure 0.6MPa)
High-pressure Water Pre-rinsing Optional (stainless steel vertical pump, pump water pressure 2MPa)
Intelligent Low-temperature Start-stop System Optional
Voice Broadcast System Optional
Wide-angle Lens Optional
WeChat Payment Function Optional(Optional for China only)
Customer-supplied Water Tank Specifications 2吨
Customer-supplied Air Compressor Specifications 2.2kW, 120L, 0.8MPa
Mode 1 (→) Foam Car Wash Brushing + Spraying Wax, (←) Air Drying
Mode 2 (→) Foam Car Wash Brushing, (←) Spraying Wax
Mode 3 (→) Foam car wash scrubbing, (←) water scrubbing + spraying with water wax, (→+←) Air Drying
Mode 4 (→+←)Air Drying
Applicable Car Types Passenger car, SUV, minivan, and other vehicles with less than 7 seats

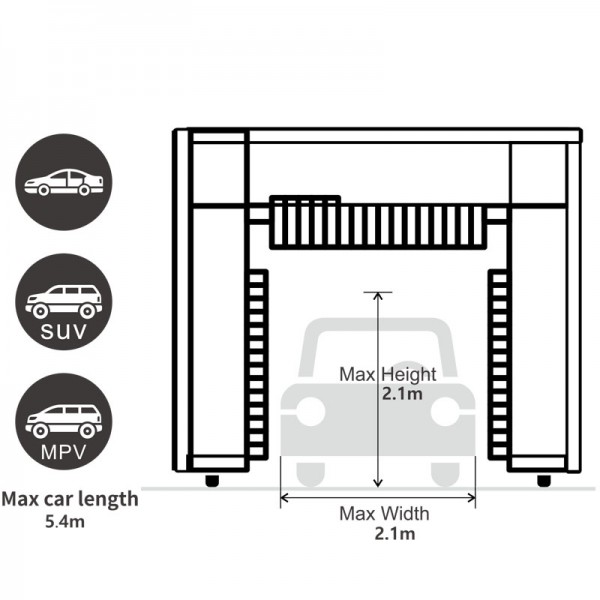

Max.Washable Car Dimensions(L*W*H) 5.4m × 2.2m × 2.1m
Car Wash Time Mode 1 Around 3min/car,Mode 2 Around 3min/car,Mode 3 Around 6min/car,Mode 4Around 3min/car
Shampoo Consumption Mode 1 Around 24.5mL/car,Mode 2 Around 24.5mL/car,Mode 3 Around 24.5mL/car
Wax Consumption Mode 1 Around 19mL/car,Mode 2 Around 19mL/car,Mode 3 Around 19mL/car
Power Consumption Mode 1 Around 0.95 kWh/car,Mode 2 Around 0.7 kWh/car,Mode 3 Around 1.5 kWh/car,Mode 4 Around 0.8 kWh/car
Water Consumption Mode 1 Around 100L/car,Mode 2 Around 120L/car,Mode 3 Around 120L/car
Machine Dimensions(L * W * H) 2.4m × 3.7m × 3.3m
Track Dimensions(L * W ) 9.5m × 3.29m
Installation Dimensions(L * W * H) 10m × 4m × (>4m)
Air Source Requirement 0.6~0.8MPa
Rated Voltage of Machine 3-phase AC380V 50Hz
Rated Power of Machine 29.41kW
Top Brush Rotation Motor 0.75kW*1
Top Brush Lifting Motor 0.75kW*1
Side Brush Rotation Motor 0.75kW*2
Side brush opening and closing motor 0.18kW*2
Small Brush Motor 0.37kW*2
Travelling Motor 0.18kW*2
Top Dryer Motor 5.5kW*2
Side Dryer Motor 5.5kW*2
Top Dryer Lifting Motor 0.75kW*1
Submersible Pump Motor 1.5kW*1
Submersible Pump Pressures 0.6MPa
High-pressure Water Pump Motor 4kW*1(Optional)
Pressure of High-pressure Water Pump 2MPa(Optional)
Frame Hot-dip galvanized profiles
Programmable Controller Mitsubishi, Japan
Variable Frequency Drive Shihlin, Taiwan, China
Infrared Photoelectric Switch ROKO, Taiwan, China
Proximity Switch ROKO, Taiwan, China
AC Contactor Schneider, France
Thermal Relay Schneider, France
Air Switch Delixi, Zhejiang,China
Waterproof Gear Motor Wonder, Fujian China
Pressure Reducing Valve AirTax,Taiwan China
Pressure Regulating and Filtering Valve AirTax,Taiwan China
Two-Position Five-Way Valve AirTax,Taiwan China
Pneumatic Cylinder AirTax,Taiwan China
Submersible Pump Kaili, Shanghai China
High-Pressure Water Pump Zhejiang Nanyuan Pump, China

Mattias introduces an all-new, in-bay wash system that offers your customers and higher profit potential for you. The all-new M-LM530 three-brush, the gantry-style workhorse is loaded with technologically advanced features and controls. Designed for easy installation and maintenance, the M-LM530 is a compact profit-maker that will have you cleaning up in no time.

Product Features:

  • Wide body pass-through design for a wide range of models.
  • The equipment adopts a non-rusting treatment frame for a longer service life.
  • Cross-over washing keeps the front and rear bumper clean.
  • The machine is equipped with precision sensors that can accurately sense the position of the vehicle.
  • The contour-following dryer with advanced technology will effectively remove the vehicle from the remaining water.
  • Standard with the contour-tracking top brush.
  • Adopts AGV(Automatic Guided Vehicle) technology to protect both the vehicle and the equipment.
  • Equipped with fault self-test function.
  • Provide an intelligent parking guidance system.
